Compact Containment. Safe. Compliant. Built for Purpose.

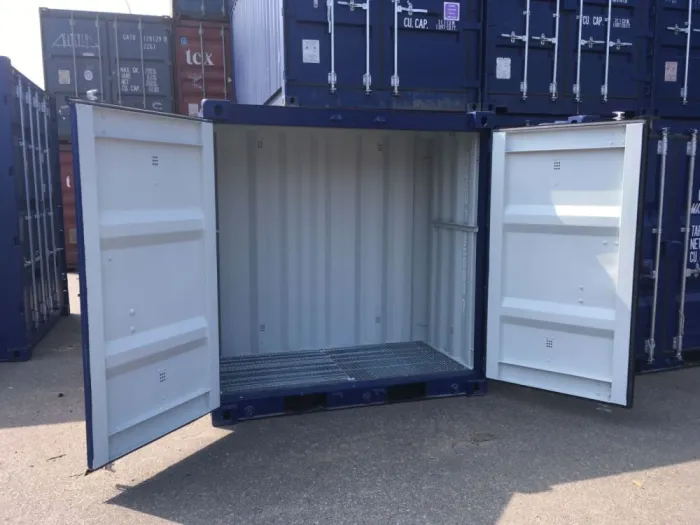

This 4-foot drip tray container is purpose-built for the safe storage of environmentally sensitive or hazardous materials. Designed for industrial and commercial use, it features a fully integrated steel drip tray, mesh flooring, and ventilation/drainage systems that meet workplace safety and environmental containment standards.
Its compact form factor makes it ideal for businesses handling oils, chemicals, solvents, or hazardous liquids in smaller volumes—without compromising safety or structural performance.
Specifications
Detail | Measurement / Feature |
---|---|
Internal Dimensions | 1.049 x 2.112 x 2.060 m |
External Dimensions | 1.200 x 2.200 x 2.260 m |
Door Opening (W x H) | 2.106 x 1.949 m |
Volume | 4.60 m³ (main) / 0.2 m³ (tray volume) |
Tare Weight | 670 kg |
Max Payload | 2,330 kg |
Max Cargo Weight | 3,000 kg |
Color (Standard) | RAL 5013 (Available in custom RAL shades) |
Material | Weather-resistant Corten steel |
Note: This container is not CSC certified (not for intermodal shipping).
Features & Functional Design
- Integrated Leak-Proof Drip Tray

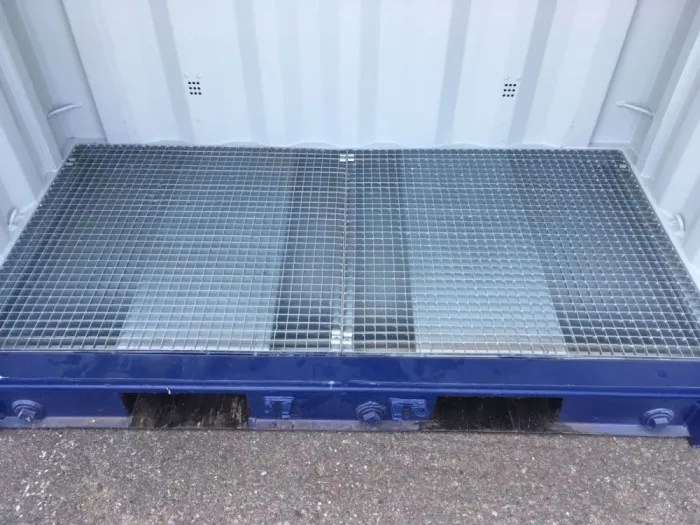

Welded containment basin designed to trap spills, with galvanized steel mesh floor to keep stored goods elevated and safe. - Air Ventilation & Drainage
Fitted with air vents for fume dissipation and drain valves for controlled liquid removal. - Built-In Lockbox
Reinforced door system with lockbox enclosure for tamper-resistant security. - Mobility & Flexibility
Two forklift pockets make loading easy. Containers are fully stackable and powder-coated for long-term durability. - Custom Finishing Available
Choose any RAL color for branding or site compliance.
Use Case Applications
- Chemical & hazardous waste storage
- Oil barrels and solvent containment
- Facility spill response units
- Mobile safety stations for fuel-sensitive operations
- Industrial sites with containment regulations (OSHA, EPA compliance)
