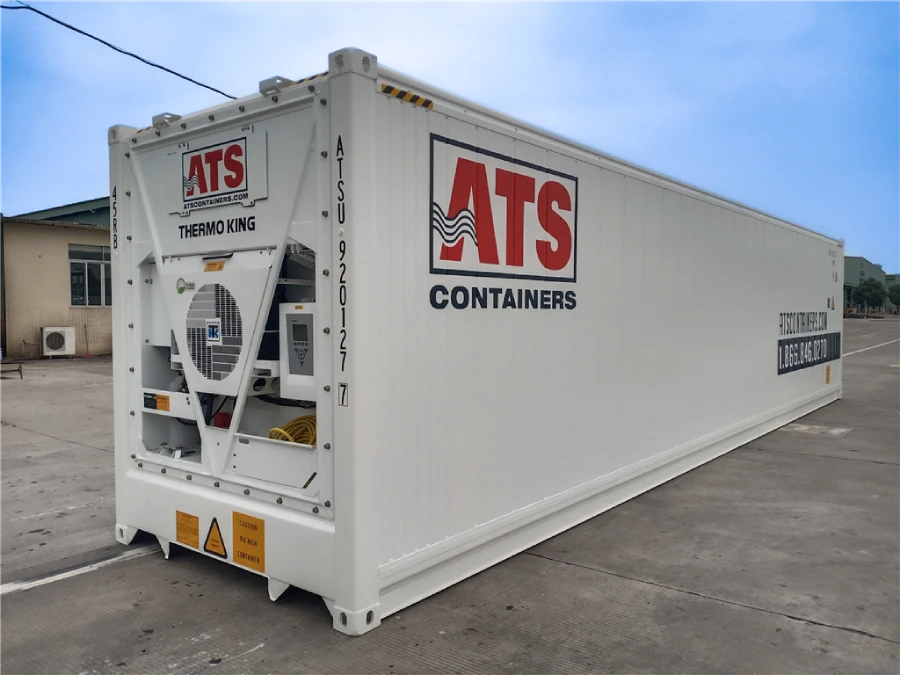

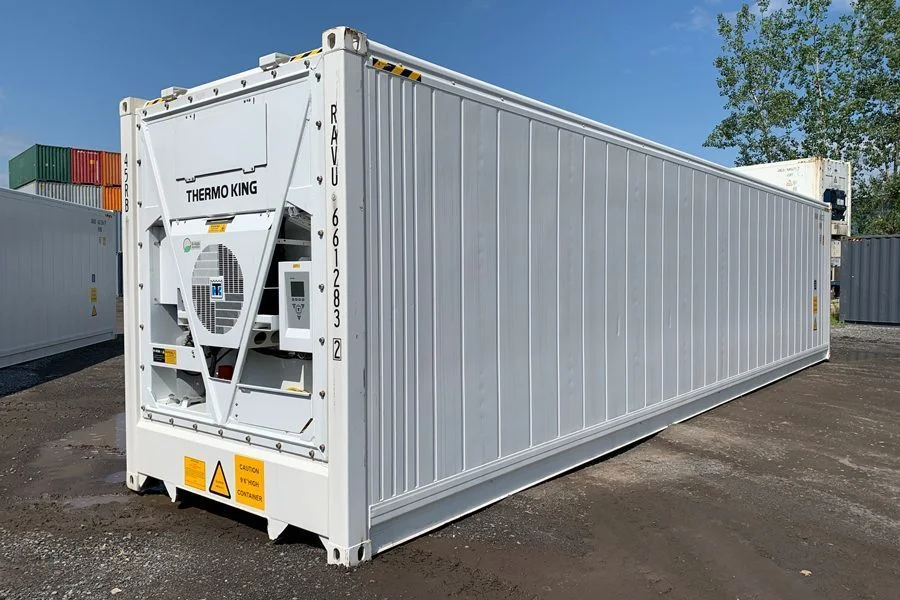

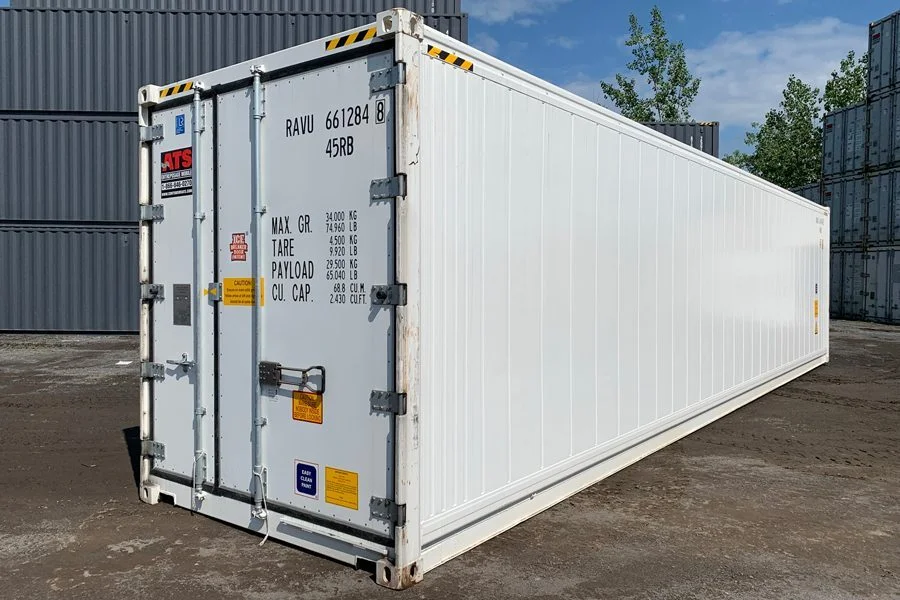

40FT High Cube New Refrigerated Shipping Container (One Trip)
Container Specifications
- Type: 40’ High Cube Reefer (One Trip / New)
- Exterior: Stainless Steel (Marine Grade)

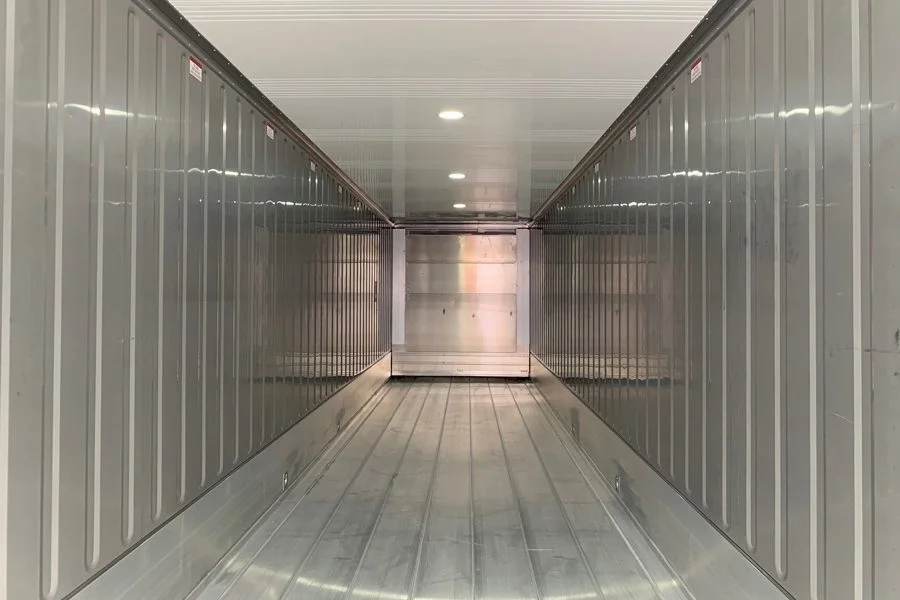

- Interior: Food-grade stainless steel + aluminum hybrid
- Insulation: High-density polyurethane foam
- Drainage: 4 automatic, self-closing drains (2 front, 2 rear)
- Flooring: Flat aluminum + aluminum scuff liner

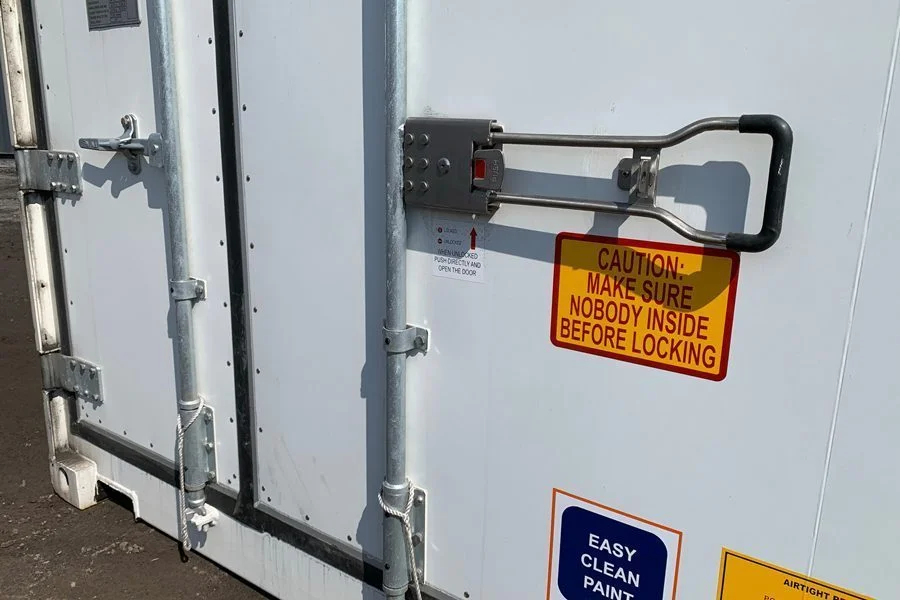

- Door System: Standard cargo doors with padlock-ready handles
- Additional Safety:

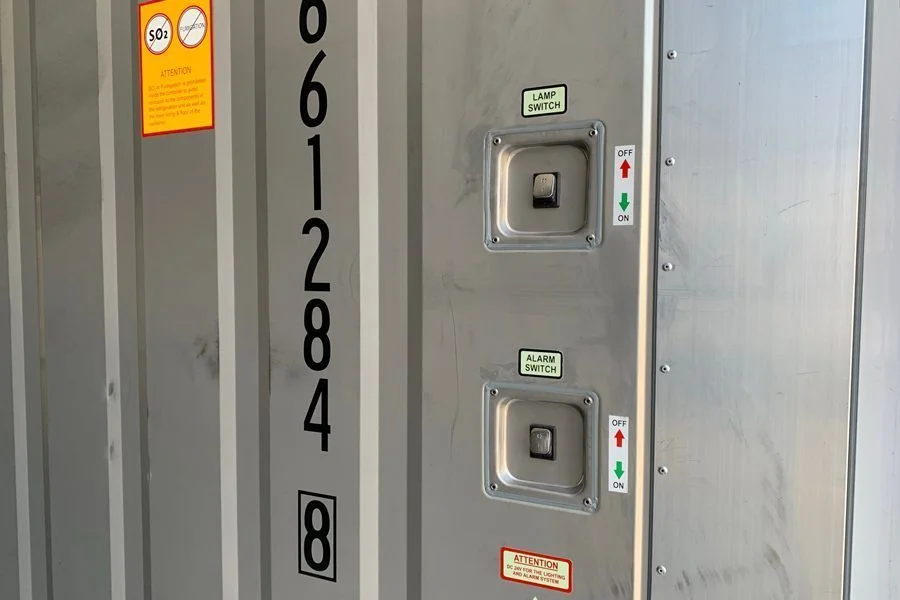

- Panic alarm with exterior strobe and siren
- Emergency safety door (internal-release enabled)
- Interior lighting and on/off light switch

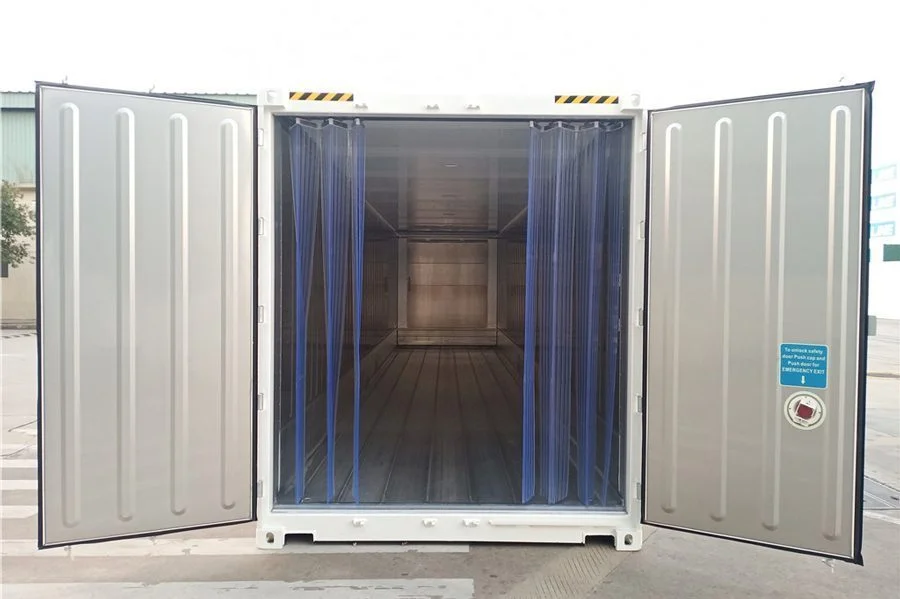

- Heavy-duty thermal curtain
Cold Chain Confidence — Built for Precision. Delivered for Purpose.
This new 40FT High Cube refrigerated container—commonly referred to as a one-trip reefer—is engineered for businesses requiring stable, ultra-low-temperature storage and transport across a wide range of temperature-sensitive goods.
Built with marine-grade stainless steel cladding, a polyurethane insulated core, and a food-grade interior, this unit delivers performance where consistency is non-negotiable—from vaccine deployment to seafood logistics and pharmaceutical storage.

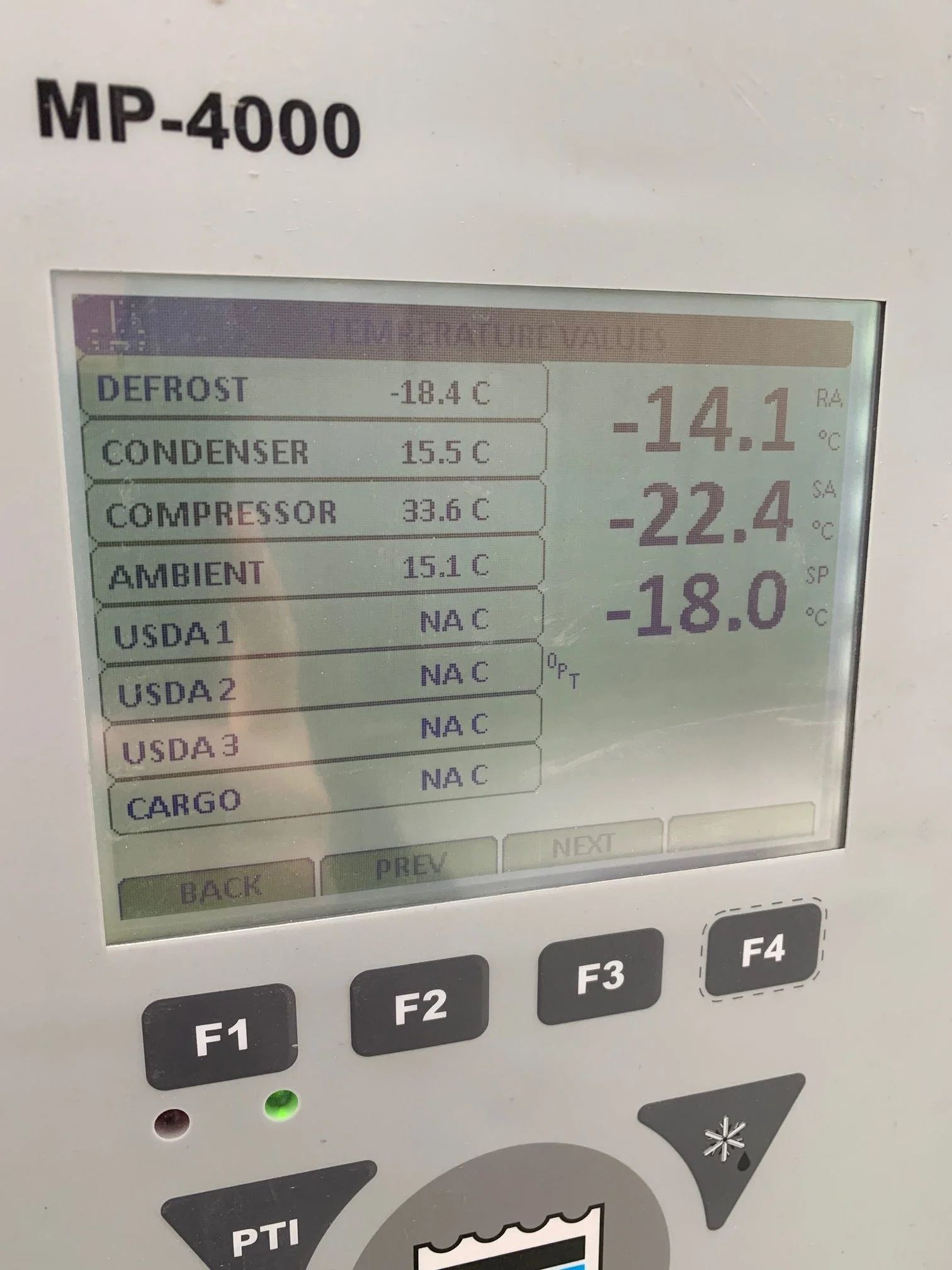

Refrigeration System Details

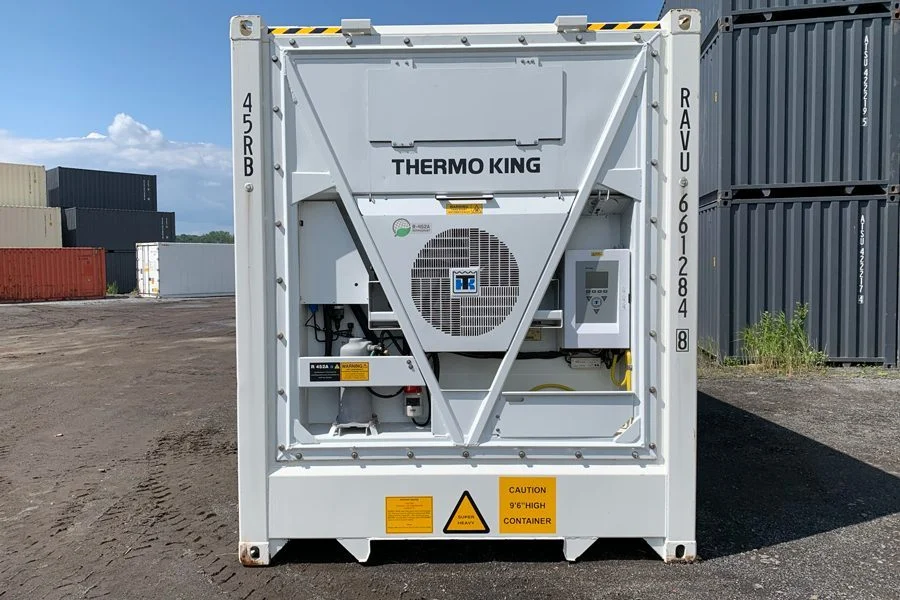

- Make & Model: Thermo King Magnum Plus
- Technology: Digital scroll compressor with aluminized coating
- Temperature Range: -40°C to +30°C
- Power Specs:
- Voltage: 460V
- Phase: 3-phase
- Amps: 30A circuit requirement
- Comes with 50 ft power cable
- Refrigerant: R452A (low GWP)
Thermo King’s Magnum Plus system is globally recognized for its rapid pulldown, precise temperature control, and energy efficiency.

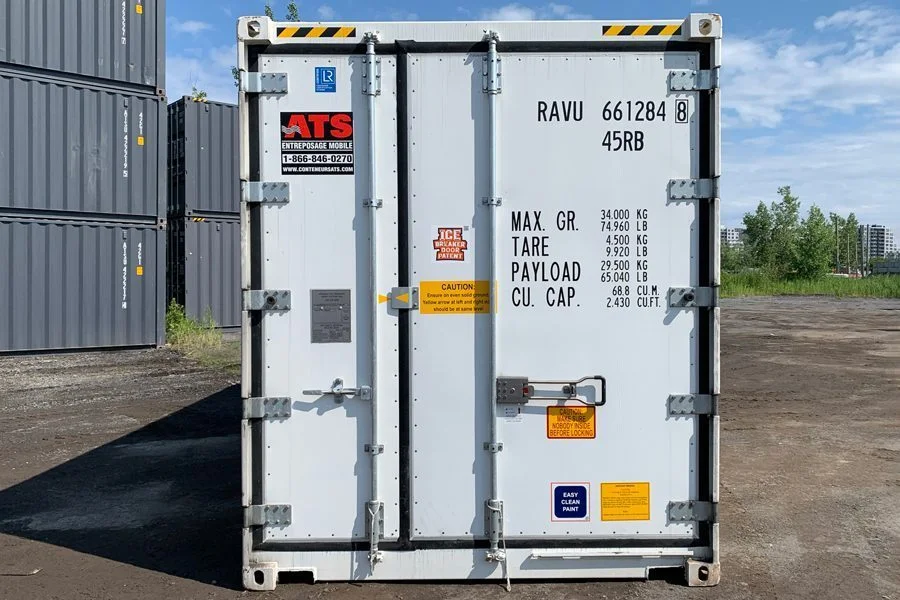

Container Dimensions & Capacity
Category | Measurement |
---|---|
External (L x W x H) | 40’ x 8’ x 9’6” |
Internal (L x W x H) | 38’ x 7’6” x 8’6” |
Door Opening | 7’6” W x 8’4” H |
Tare Weight | 9,920 lbs |
Payload Capacity | 65,040 lbs |
Cold Chain Applications
This unit is well-suited for:
- Pharmaceutical and COVID-19 vaccine storage (meets –40°C standard)
- Mobile cold storage for disaster response zones or high-turnover commercial sites
- Frozen food warehousing or seafood transport
- Meat processing logistics and remote butchering hubs
- Controlled perishable distribution from farms to retailers
