20FT Offshore Reefer Container

Reliable Cold Chain Performance for Offshore Environments

The 20FT Offshore Reefer Container is a high-specification, certified refrigerated unit engineered to deliver temperature-controlled storage in demanding offshore and marine environments. Designed with corrosion-resistant stainless steel cladding and robust structural reinforcements, this container maintains interior climate conditions from –25°C to +25°C and complies with international offshore handling and safety standards.

Certified under DNV 2.7-1, EN 12079, and ISO / CSC frameworks, it is suitable for stacking, intermodal lifting, and harsh deployment scenarios involving critical perishable or sensitive cargo.

Key Specifications

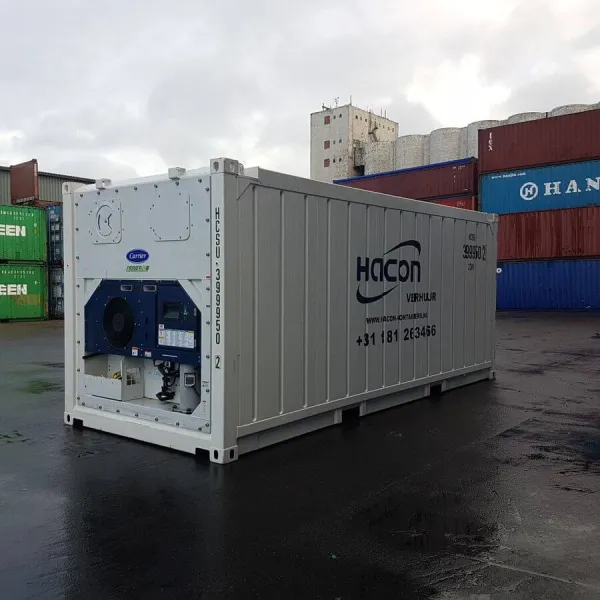

Temperature Control System

• Operating Range: –25°C to +25°C

• Refrigeration Engine Consumption: 16 Amp (nominal)

• Connection Type: 32 Amp standard power inlet

• Engine Compatibility: Supports 6 Amp operational efficiency

• PTI Tested: Includes pre-trip inspection (PTI) report and runtime verification

Structural & Functional Design

• External Cladding: Stainless steel shell — corrosion resistant and marine grade

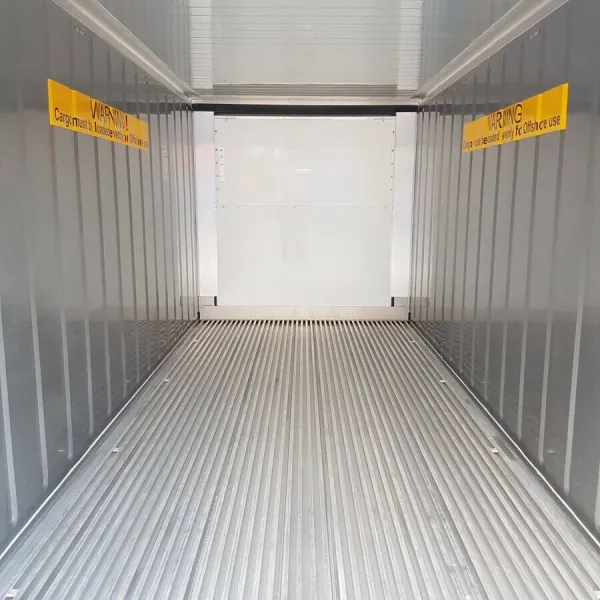

• Flooring: T-bar aluminum — facilitates airflow and easy washdown

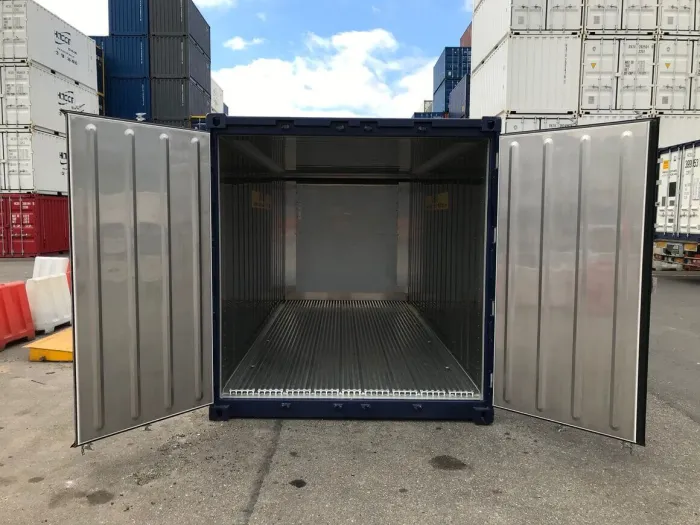

• Door System:

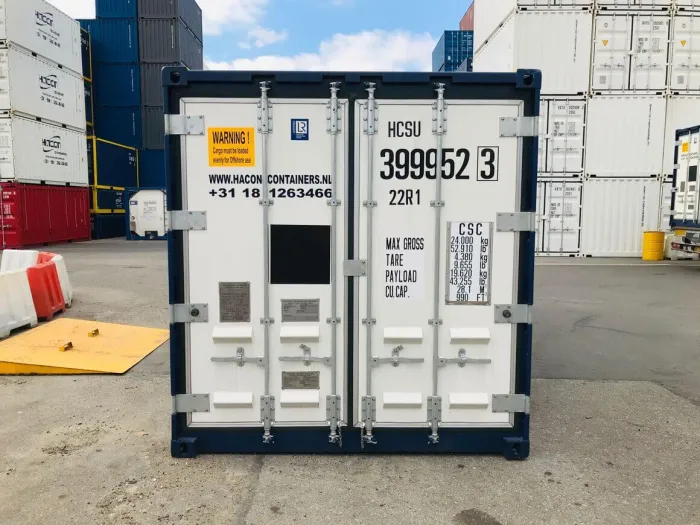

  • Rear double cargo doors with thermal seals and dual-locking handles

  • Side access door (2.280 m W x 2.244 m H) for alternative loading

• Forklift Pockets: Integrated for streamlined handling

• Stackability: ISO corner castings for vertical load bearing and lifting

• Security: Lockable access points with reinforced hinges and gaskets

Certifications & Compliance

This unit is fully compliant with:

• DNV 2.7-1 Offshore Containers

• EN 12079 Offshore Equipment

• ISO / CSC for intermodal and maritime use

• Lifting Slings: Certified slings included upon request with documentation

Each unit undergoes final inspection, PTI validation, and comes with compliance documentation ready for regulatory submission or onsite deployment.

Use Case Suitability

Offshore Platforms
Secure, stable cold storage for rig-based provisions, lab samples, or emergency inventory.

Marine Logistics & Expeditions
Preservation of scientific specimens, research supplies, or protein under constant transit.

Pharmaceuticals & Biotechnology
Ideal for field-deployed medical storage requiring validated temperature control.

Military & Disaster Response
Field-tested container for mobile cooling of food, medicine, or biological materials.

Chemical & Protein Supply Chains
Cold-chain management for temperature-sensitive chemicals or food products in transit or standby storage.

Deployment Notes

This reefer container is suitable for stationary storage, dynamic transport, or on-deck use in harsh climates. Side door access simplifies mid-cycle load handling, and built-in compliance ensures fast customs or marine logistics clearance.

Container ships ready-to-deploy from inventory locations with pre-tested functionality and documentation provided.
