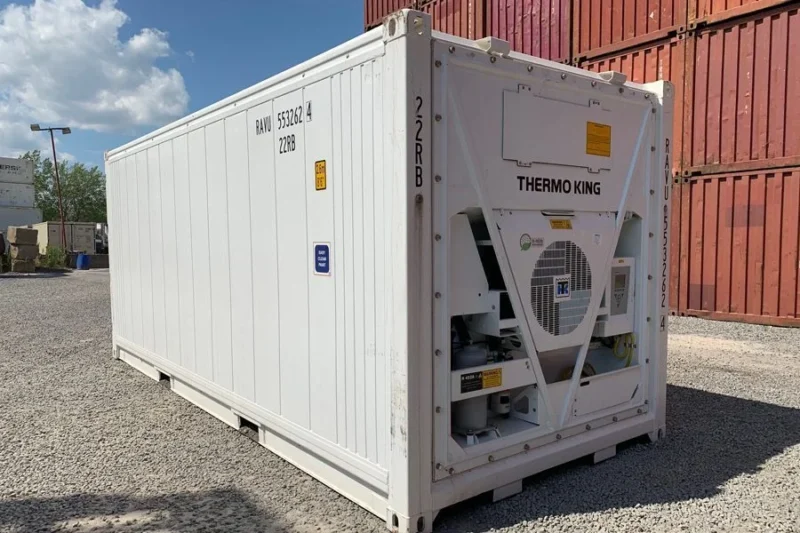

20FT New Refrigerated Shipping Container
Precision Cooling. Built to Last. Ready to Deploy. This 20-foot new refrigerated container—also known as a one-trip ISO reefer—is engineered for extreme temperature control, food safety, […]
Precision Cooling. Built to Last. Ready to Deploy.
This 20-foot new refrigerated container—also known as a one-trip ISO reefer—is engineered for extreme temperature control, food safety, and high-performance cold chain logistics. Manufactured with an aluminum exterior and a stainless-steel interior, it’s a fully insulated solution ideal for storing and transporting perishables, pharmaceuticals, and temperature-sensitive materials.
Equipped with a Thermo King Magnum Plus unit, this container maintains a consistent internal temperature between -40°C and +30°C, making it suitable for vaccine storage, mobile medical use, or demanding food-grade storage applications.
Key Features & Build Specifications
| Component | Specification |
|---|---|
| Container Type | 20FT New (One-Trip) ISO Reefer |
| Exterior | Corrosion-resistant aluminum cladding |

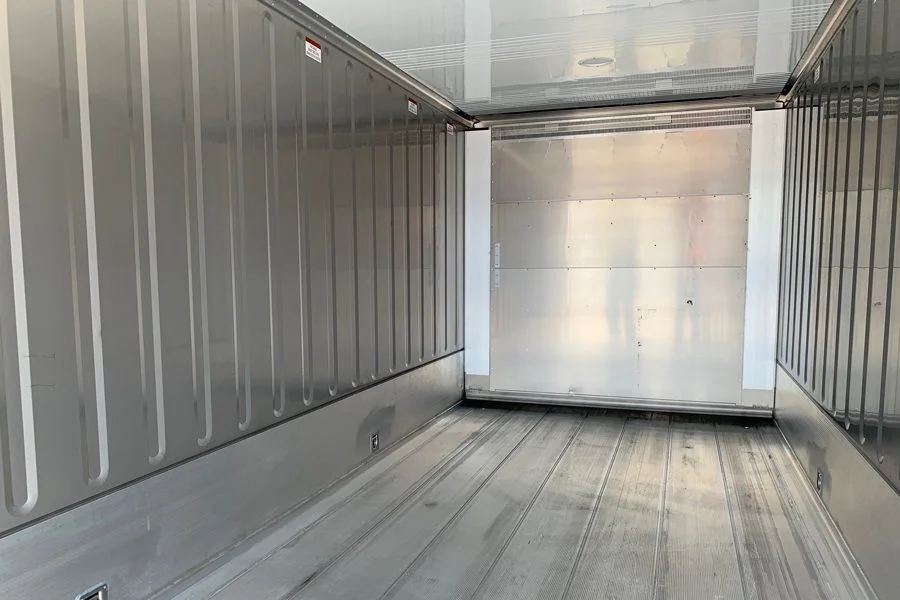

| Interior | Stainless steel, food-grade, easy-to-sanitize |
| Floor | Aluminum flat floor with scuff liner |
| Drainage | 4 automatic, self-closing floor drains (2 front, 2 rear) |
| Lashing Bars | 4 total (2 per side) |
| Forklift Pockets | 14″ x 4.5″ openings, 80” spacing center-to-center |

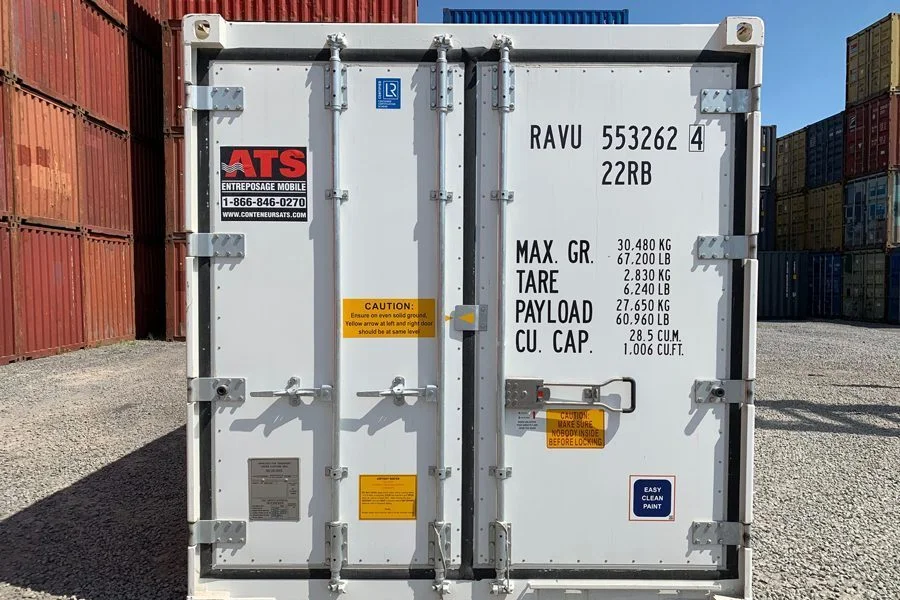

| Door Features | Double doors with padlock provision; safety release from inside |

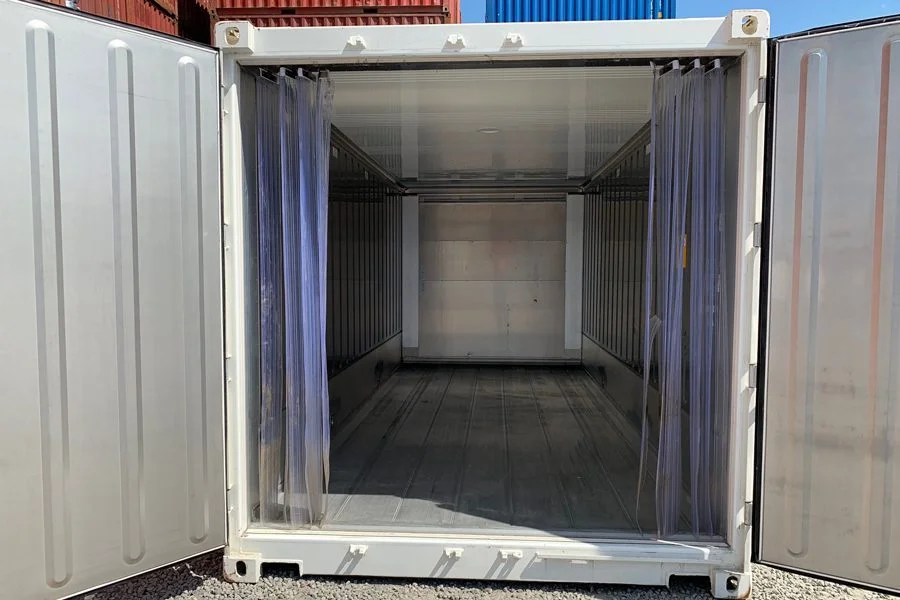

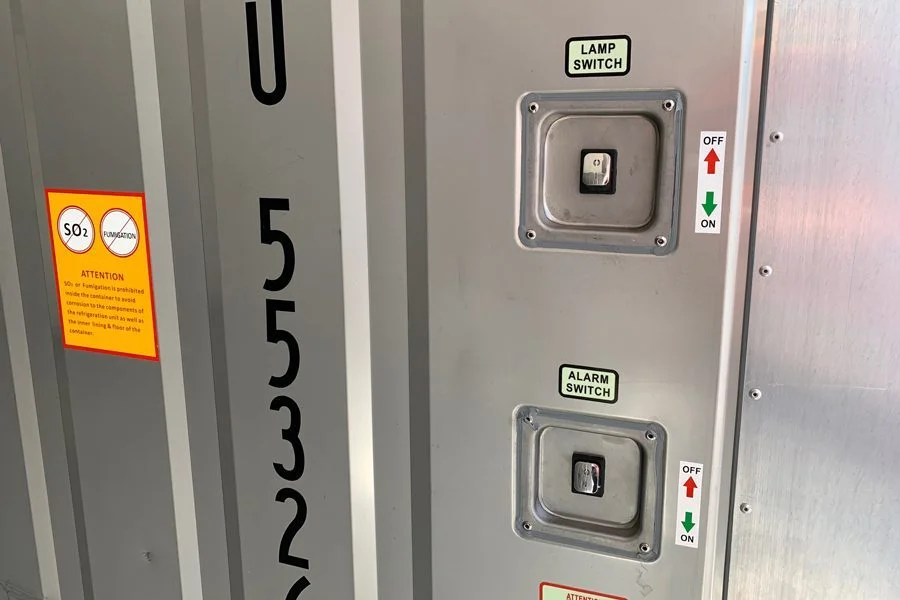

| Interior Add-ons | Panic alarm system with siren + strobe, interior lighting, curtain door |
Refrigeration Machinery Specifications

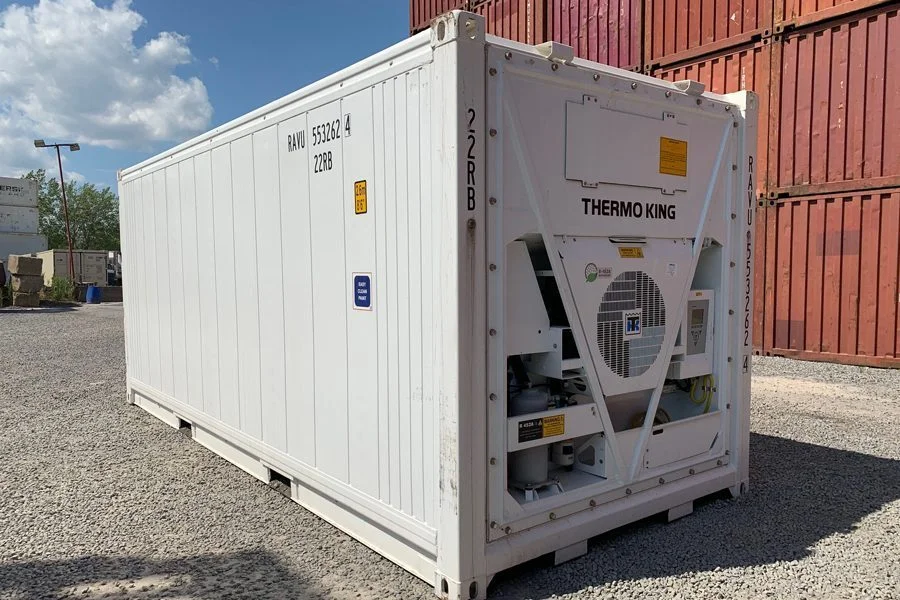

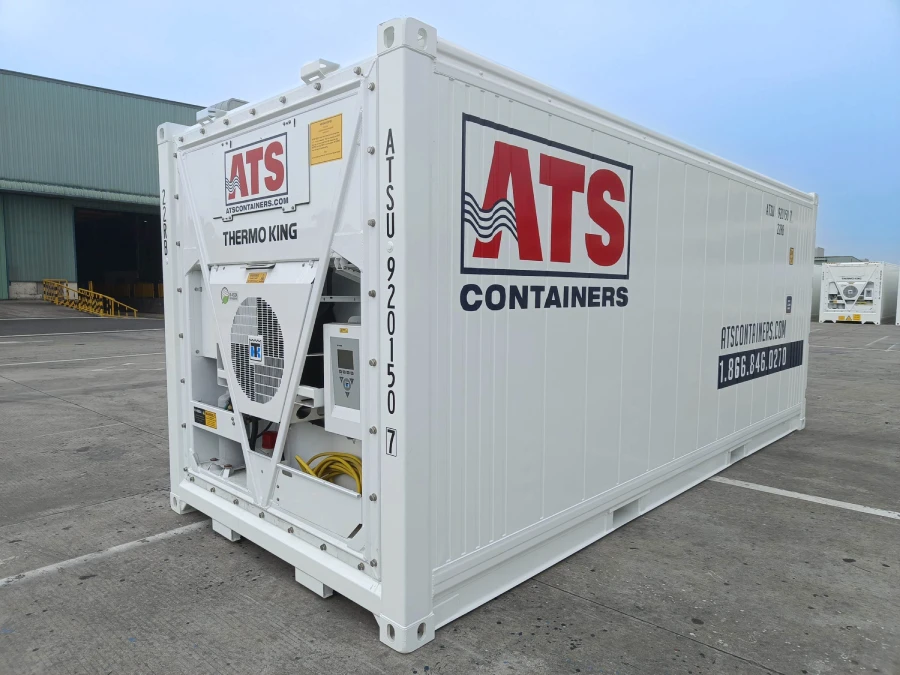

- Unit: Thermo King Magnum Plus
- Compressor: Digital scroll, aluminized coating
- Refrigerant: R452A
- Temperature Range: -40°C to +30°C
- Voltage: 460V, 3-phase, 30 amps
- Power Cable: 50 ft. factory-installed
- Warranty: Full Thermo King warranty honored nationwide through dealer network
⚙️ Ready for food-grade use, pharmaceutical-grade storage, or mission-critical deployments.
Container Dimensions
| Measurement | Exterior | Interior | Door Opening |
|---|---|---|---|
| Length | 20’0” | 17’10” | 7’6” |
| Width | 8’0” | 7’6” | 7’6” |
| Height | 8’6” | 7’5” | 7’4” |
| Weight | 6,190 lbs (empty) | ||
| Payload Capacity | Up to 61,010 lbs |
Application Examples
- Cold Chain Logistics – food storage, seafood handling, chilled beverages
- Pharmaceutical Use – mobile vaccine storage, site-based pharma containers
- Disaster Response – cold storage at pop-up clinics and mobile emergency operations
- Military & Government Use – rugged, scalable cold rooms for field deployment
