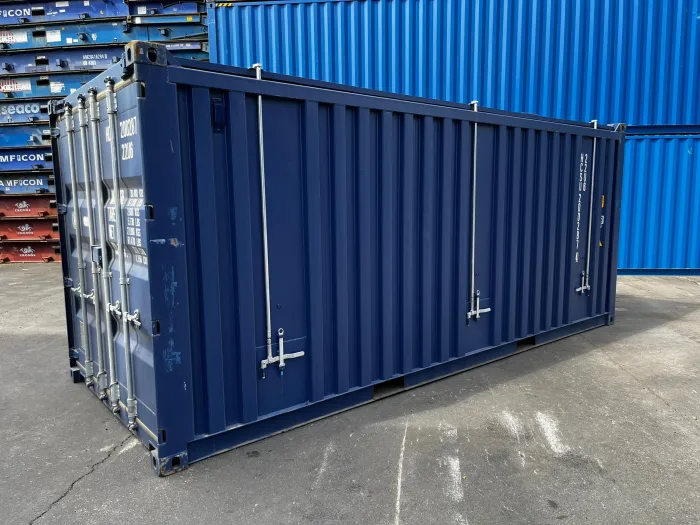

20FT Hard Open Top Container
Key Specifications
Feature | Details |
---|---|
External Dimensions (L x W x H) | 6.058m x 2.438m x 2.591m |
Internal Dimensions (L x W x H) | 5.898m x 2.332m x 2.373m |
Door Opening (W x H) | 2.338m x 2.262m |
Tare Weight | 3,390 kg |
Max Payload | 27,090 kg |
Max Cargo Weight | 30,480 kg |
Internal Volume | 32.60 m³ |
Top-Loading Versatility with Full Steel Security
The 20ft Hard Open Top container is built for demanding industrial use where overhead loading or irregular cargo access is essential. Engineered with a removable steel roof and a detachable header above the container doors, this unit ensures maximum accessibility for loading by crane, hoist, or overhead systems.
This container type is CSC certified, made from durable CORTEN steel, and fully compliant for both intermodal transport and on-site storage. It’s an ideal choice for oversized machinery, irregular-height cargo, or high-clearance items not suited to standard containers.
Construction Features
- Removable Steel Roof — suitable for top-loading by crane or gantry

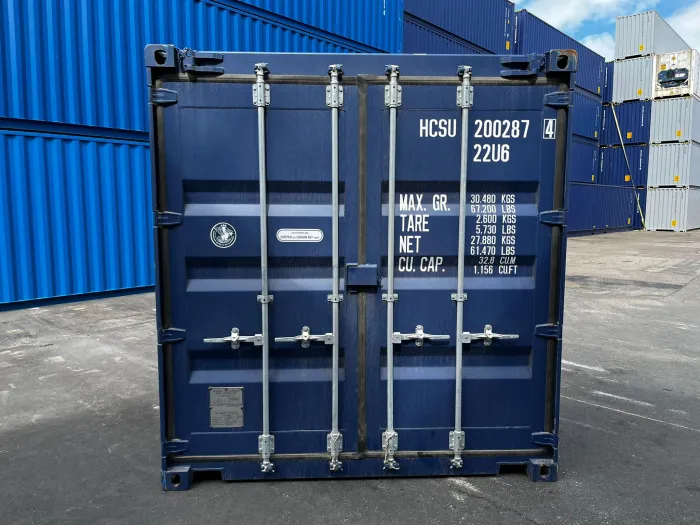

- Detachable Door Header — improves vertical clearance during loading

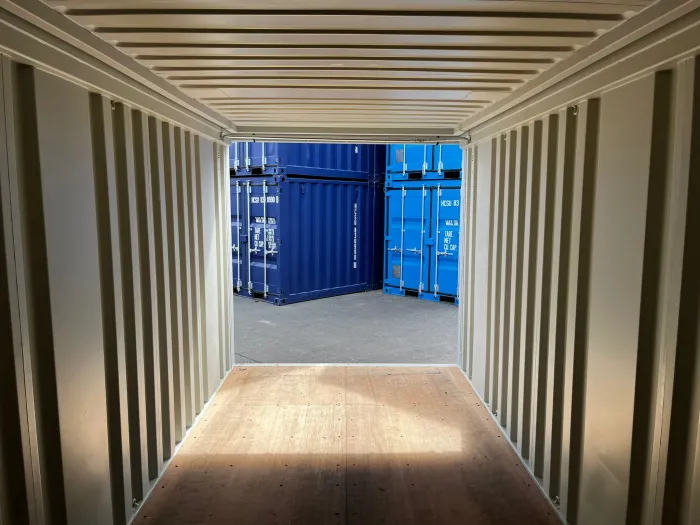

- Standard Plywood Floor — steel floor available upon request
- CORTEN Steel Walls — rust-resistant and built for long-term exposure
- Double High Locking Gear — secure in transit, efficient for stacking
- Forklift Pockets — allows easy ground movement
- Standard Air Vents & Lockbox — moisture control and added security
Available in every RAL color by request; standard unit painted in RAL 5013 (cobalt blue).
Use Case Suitability
- Heavy Machinery or Crane-Loaded Cargo
- Steel Pipe, Engine Blocks, Irregular-Height Equipment
- Waste/Recycling Material Handling
- Specialized Freight with Overhead Constraints
- Construction, Demolition, Fabrication Industries
