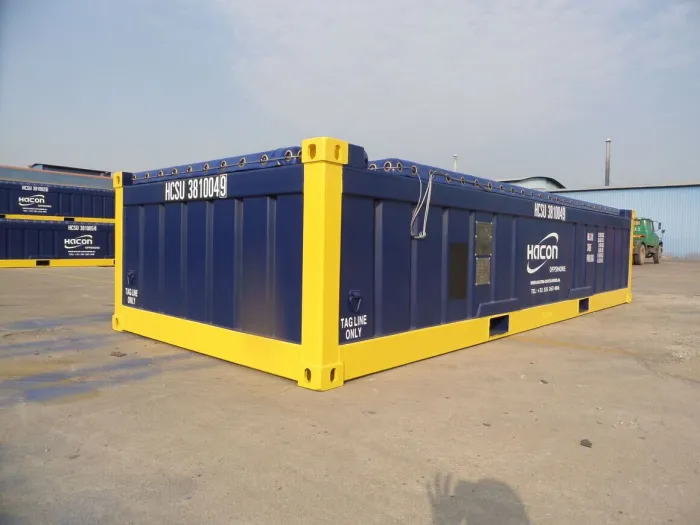

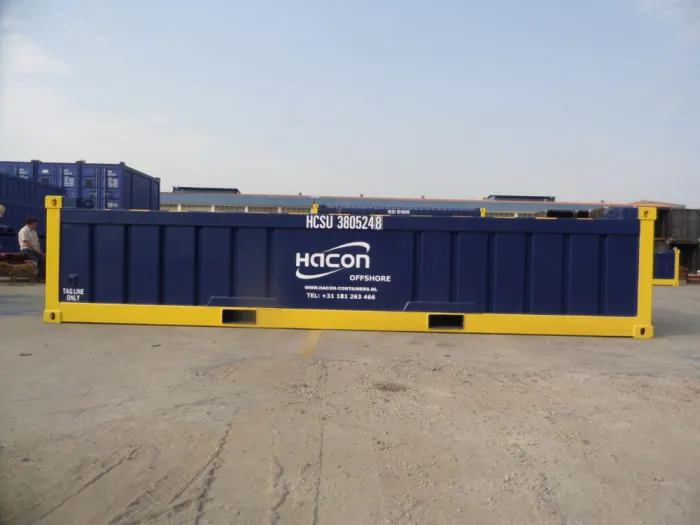

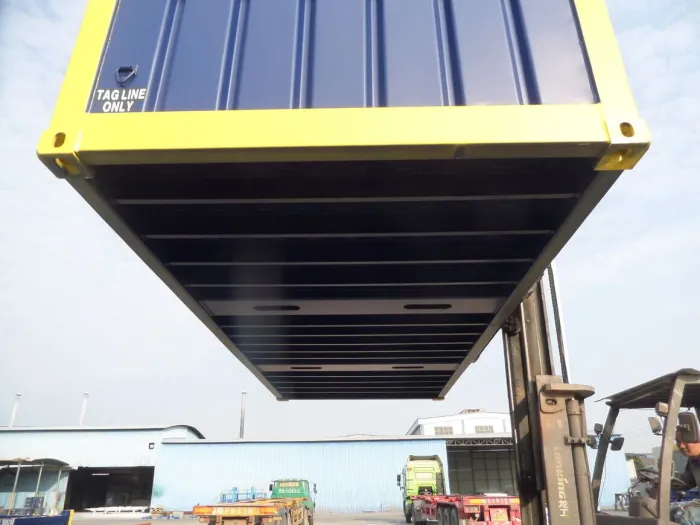

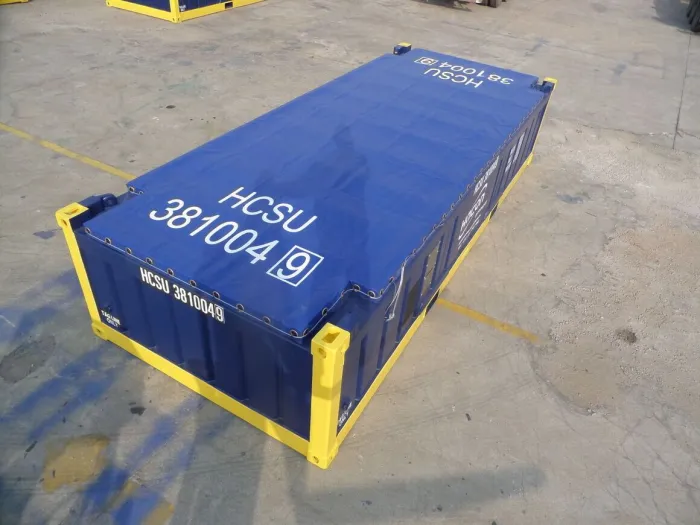

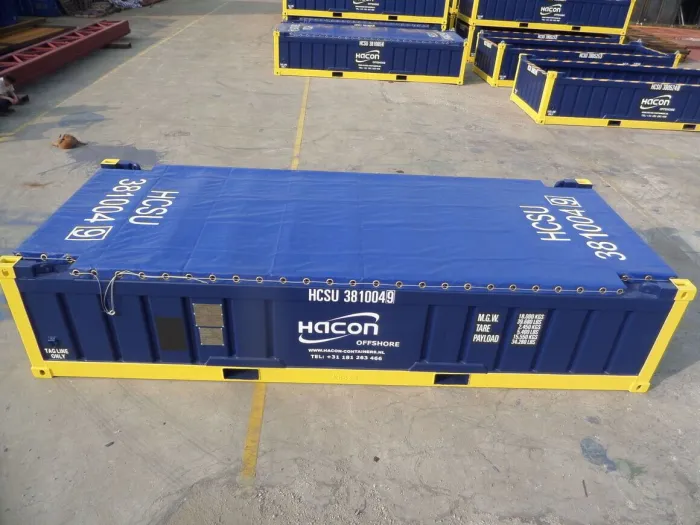

20FT DNV 2.7-1 Half Height Offshore Basket Container
$5,850.00
Key Features
- Type: 20FT Half Height Offshore Basket
- Standard Compliance: DNV 2.7-1, EN 12079, ISO, CSC
- Stackable: Yes — two units can be combined and transported as a single ISO container
- Access: Open-top, no roofbows or tarpaulin provided
- Design: No side doors; open-top only
- Construction: Full corten steel frame, steel flooring
- Lifting Gear: DNV-certified sling sets available upon request
- Integrated Forklift Pockets: For efficient yard movement and positioning
Engineered for Offshore Efficiency. Certified for Harsh Environments.
This 20FT Half Height Offshore Basket Container is designed specifically for marine and offshore applications where safety, durability, and stackability are non-negotiable. Built in accordance with DNV 2.7-1, EN 12079, ISO, and CSC standards, it delivers unmatched performance in demanding environments such as oil rigs, marine platforms, and heavy industrial sites.
Constructed from CORTEN steel, this unit offers exceptional corrosion resistance, heavy-duty payload capacity, and compliance with global offshore transport regulations.
Technical Specifications
| Parameter | Value |
|---|---|
| Internal Dimensions | 5.862m x 2.214m x 0.989m |
| External Dimensions | 6.058m x 2.438m x 1.280m |
| Internal Volume | 12.80 m³ |
| Tare Weight | 2,690 kg |
| Max Payload | 10,000 kg |
| Max Gross Weight | 12,960 kg |
| Standard Color | RAL 5013 (Navy Blue) |
| Floor Type | Fully steel-plated floor |
Use Case Applications
- Offshore Rig Support: Ideal for transporting drill pipes, chains, or subsea tools
- Subsea Projects: Engineered for handling heavy, loose components
- Heavy Equipment Yards: Effective for stacking and modular storage
- Remote Logistics: Load consolidation for helicopter lifts or barge drops
15651 CONTAINER LLC
REQUEST A QOUTE
