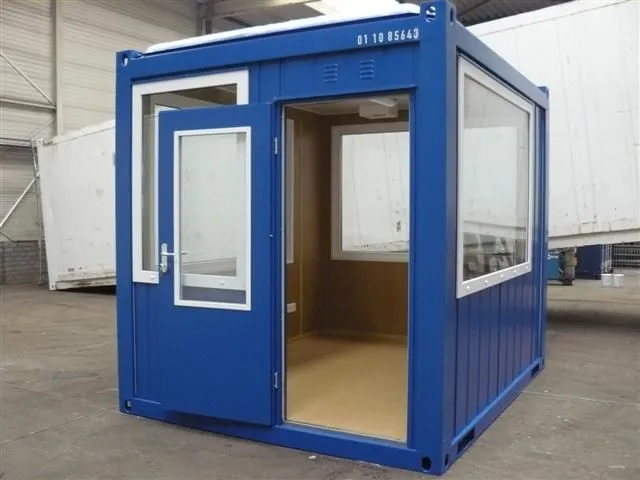

10FT Fixed Glazing Observation Unit

Compact. Insulated. Ready to Work.

The 10FT Fixed Glazing Observation Unit is a fully enclosed, insulated, and electrically integrated portable space tailored for supervisory and monitoring tasks. With fixed glass panels on all four sides, this unit provides enhanced visibility, natural lighting, and environmental control — ideal for job site observation, event logistics, or temporary security stations.

Built from mild steel with performance insulation and factory-installed electrical components, the unit offers plug-and-play deployment and forklift-accessible mobility. It is available in new or pre-owned condition, and customizable in size and color based on site requirements.

Key Specifications

Structural & Electrical Features

• Steel Entry Door: Weather-sealed and reinforced for security

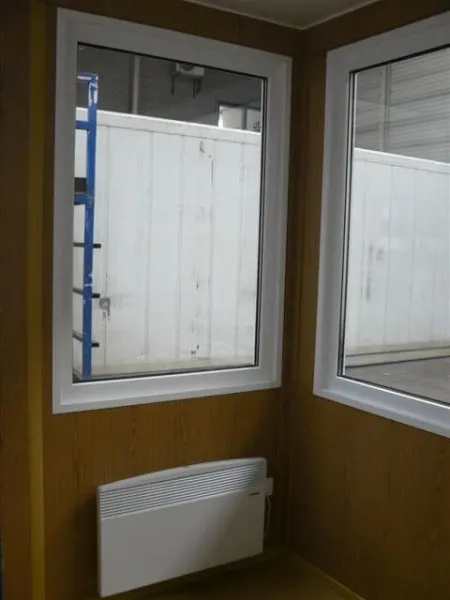

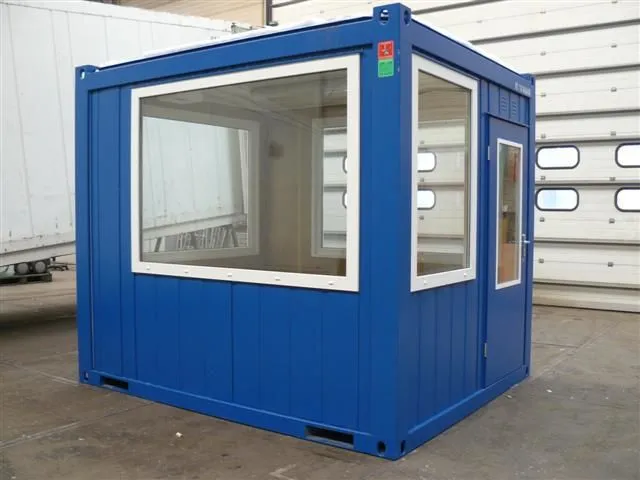

• Glazing: 4 fixed windows (one on each side) for full-angle visibility

• Insulation:

  • Floor: 60 mm

  • Walls: 60 mm

  • Roof: 100 mm

• Floor Construction: Cement-bound chipboard with PVC wear layer

• Interior Finish: Available in white or oak veneer

• Forklift Pockets: Integrated for easy relocation

• Stackability: Modular-ready design (not CSC-certified for shipping)

Electrical Installation (Pre-Wired)

• Power Connection: 4000V / 32A, 5-pin external connector

• Lighting: 1x 36W fluorescent ceiling light

• Heating: 1x 2kW wall-mounted convector heater

• All components tested prior to dispatch and meet operational safety standards.

Available Options & Variants

• Sizes: 10FT, 16FT, 20FT, 24FT, 30FT (availability may vary)

• Condition: New or used (subject to inventory)

• Color Customization: Full RAL color palette on request

• Custom Layouts: Alternate window placement and interior finishes available on large orders

• Lead Time: Ready-to-ship or custom-built within standard manufacturing schedule

Suitable Applications

Construction Site Observation
Serves as a central vantage point for site supervisors or safety officers.

Security & Monitoring Cabin
Provides enclosed visibility for entry gates, high-value storage, or equipment yards.

Portable Office or Reception Space
Functions as a temporary command center, admin base, or welcome station on temporary sites.

Event Control or Logistics Hub
Used for credential control, staff organization, or vendor management during festivals and sporting events.
